SDWebImage初探

记录一下SDWebImage第三方源码的研究

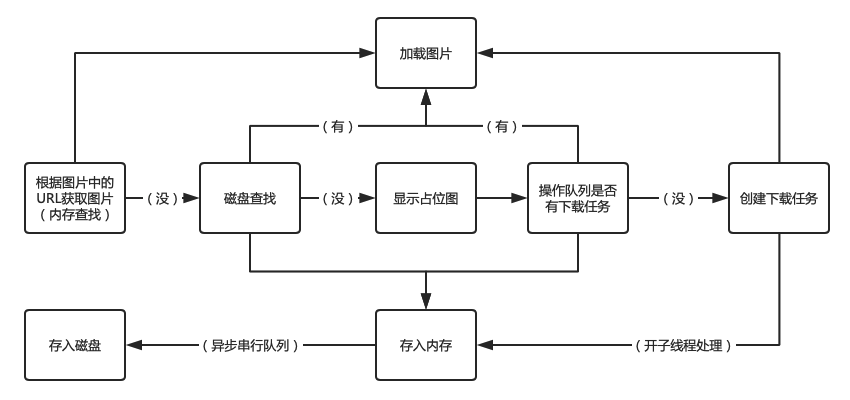

流程图

流程说明

首先会在 SDWebImageCache 中寻找图片是否有对应的缓存, 它会以url 作为数据的索引先在内存中寻找是否有对应的缓存
如果缓存未找到就会利用通过MD5处理过的key来继续在磁盘中查询对应的数据, 如果找到了, 就会把磁盘中的数据加载到内存中，并将图片显示出来
如果在内存和磁盘缓存中都没有找到，就会向远程服务器发送请求，开始下载图片
下载后的图片会加入缓存中，并写入磁盘中
整个获取图片的过程都是在子线程中执行，获取到图片后回到主线程将图片显示出来

伪代码

#pragma mark - 检查图片缓存
    //从内存缓存中取出
    if(有图片)
    {
        //直接设置
    }else{
#pragma mark - 检查磁盘缓存
    //获取文件路径

    //得到图片的名称 获取节点

    //拼接文件的全路径

    //从磁盘缓存中取出

    if(data)
    {   //将二进制数去转成图片

        //设置图片

        //把图片存到内存缓存中

    }else{
#pragma mark - 检查操作缓存
        //清空图片或者是设置占位图片

        //检查操作缓存

        if (操作缓存) {
            //如果存在,那么什么都不做
        }else{
            //操作步骤
            {
                //下载图片三步骤
                if (图片为空) {
                    //移除操作缓存中的操作

                    //直接返回
                    return ;
                }
                //把图片存到内存缓存中

                //把图片保存到磁盘缓存

                //回到主线程设置图片

            }

            //添加操作到缓存中

            //将操作加入队列

        }
    }
#pragma mark - 移除缓存策略
    //移除内存缓存

    //取消队列中的操作


---

下载图片

//下载图片的核心方法
/*
 * url          图片的二进制数据
 * placeholder  UIImageView的占位图片
 * options      图片下载选项（策略）
 * progressBlock    进度回调
 * completedBlock   完成回调
 */
- (void)sd_setImageWithURL:(NSURL *)url placeholderImage:(UIImage *)placeholder options:(SDWebImageOptions)options progress:(SDWebImageDownloaderProgressBlock)progressBlock completed:(SDWebImageCompletionBlock)completedBlock {

    // 取消当前图像下载
    [self sd_cancelCurrentImageLoad];

    // 利用运行时retain url
    objc_setAssociatedObject(self, &imageURLKey, url, OBJC_ASSOCIATION_RETAIN_NONATOMIC);

    //判断，如果传入的下载策略不是延迟显示占位图片，那么在主线程中设置占位图片
    if (!(options & SDWebImageDelayPlaceholder)) {
        dispatch_main_async_safe(^{
            // 设置占位图像
            self.image = placeholder;
        });
    }

    //如果url不为空
    if (url) {

        // check if activityView is enabled or not
        //检查activityView是否可用
        if ([self showActivityIndicatorView]) {
            [self addActivityIndicator];
        }

        __weak __typeof(self)wself = self;
        // 实例化 SDWebImageOperation 操作
        id <SDWebImageOperation> operation = [SDWebImageManager.sharedManager downloadImageWithURL:url options:options progress:progressBlock completed:^(UIImage *image, NSError *error, SDImageCacheType cacheType, BOOL finished, NSURL *imageURL) {
            //移除UIActivityIndicatorView
            [wself removeActivityIndicator];
            if (!wself) return;

            //下面block中的操作在主线程中处理
            dispatch_main_sync_safe(^{
                if (!wself) return;
                //如果图片下载完成，且传入的下载选项为手动设置图片则直接执行completedBlock回调，并返回
                if (image && (options & SDWebImageAvoidAutoSetImage) && completedBlock)
                {
                    completedBlock(image, error, cacheType, url);
                    return;
                }
                else if (image) {   //否则，如果图片存在，则设置图片到UIImageView上面，并刷新重绘视图
                    wself.image = image;
                    [wself setNeedsLayout];
                } else {
                    //如果没有得到图像
                    //如果传入的下载选项为延迟显示占位图片，则设置占位图片到UIImageView上面，并刷新重绘视图
                    if ((options & SDWebImageDelayPlaceholder)) {
                        wself.image = placeholder;
                        [wself setNeedsLayout];
                    }
                }
                if (completedBlock && finished) {
                    completedBlock(image, error, cacheType, url);
                }
            });
        }];
        [self sd_setImageLoadOperation:operation forKey:@"UIImageViewImageLoad"];
    } else {
        //如果url为空，则在主线中处理下面的操作
        dispatch_main_async_safe(^{
            //移除UIActivityIndicatorView
            [self removeActivityIndicator];

            //处理错误信息，并执行任务结束回调，把错误信息作为参数传递出去
            NSError *error = [NSError errorWithDomain:SDWebImageErrorDomain code:-1 userInfo:@{NSLocalizedDescriptionKey : @"Trying to load a nil url"}];
            if (completedBlock) {
                completedBlock(nil, error, SDImageCacheTypeNone, url);
            }
        });
    }
}

下载操作队列

/*
 * 如果URL对应的图像在缓存中不存在，那么就下载指定的图片 ，否则返回缓存的图像
 *
 * @param url 图片的URL地址
 * @param options 指定此次请求策略的选项
 * @param progressBlock 图片下载进度的回调
 * @param completedBlock 操作完成后的回调
 *      此参数是必须的，此block没有返回值
 *      Image：请求的 UIImage，如果出现错误，image参数是nil
 *      error：如果出现错误，则error有值
 *      cacheType：`SDImageCacheType` 枚举，标示该图像的加载方式
 *          SDImageCacheTypeNone：从网络下载
 *          SDImageCacheTypeDisk：从本地缓存加载
 *          SDImageCacheTypeMemory：从内存缓存加载
 *          finished：如果图像下载完成则为YES，如果使用 SDWebImageProgressiveDownload 选项，同时只获取到部分图片时，返回 NO
 *          imageURL：图片的URL地址
 *
 * @return SDWebImageOperation对象，应该是SDWebimageDownloaderOperation实例
 */
- (id <SDWebImageOperation>)downloadImageWithURL:(NSURL *)url
                                         options:(SDWebImageOptions)options
                                        progress:(SDWebImageDownloaderProgressBlock)progressBlock
                                       completed:(SDWebImageCompletionWithFinishedBlock)completedBlock {
    // Invoking this method without a completedBlock is pointless
    //没有completedblock，那么调用这个方法是毫无意义的
    NSAssert(completedBlock != nil, @"If you mean to prefetch the image, use -[SDWebImagePrefetcher prefetchURLs] instead");

    // Very common mistake is to send the URL using NSString object instead of NSURL. For some strange reason, XCode won't
    // throw any warning for this type mismatch. Here we failsafe this error by allowing URLs to be passed as NSString.
    //检查用户传入的URL是否正确，如果该URL是NSString类型的，那么尝试转换
    if ([url isKindOfClass:NSString.class]) {
        url = [NSURL URLWithString:(NSString *)url];
    }

    // Prevents app crashing on argument type error like sending NSNull instead of NSURL
    //防止因参数类型错误而导致应用程序崩溃，判断URL是否是NSURL类型的，如果不是则直接设置为nil
    if (![url isKindOfClass:NSURL.class]) {
        url = nil;
    }

    //初始化一个SDWebImageCombinedOperationBlock块
    __block SDWebImageCombinedOperation *operation = [SDWebImageCombinedOperation new];
    __weak SDWebImageCombinedOperation *weakOperation = operation;

    BOOL isFailedUrl = NO;  //初始化设定该URL是正确的

    //加互斥锁，检索请求图片的URL是否在曾下载失败的集合中（URL黑名单）
    @synchronized (self.failedURLs) {
        isFailedUrl = [self.failedURLs containsObject:url];
    }

    //如果url不正确或者 选择的下载策略不是『下载失败尝试重新下载』且该URL存在于黑名单中，那么直接返回，回调任务完成block块，传递错误信息
    if (url.absoluteString.length == 0 || (!(options & SDWebImageRetryFailed) && isFailedUrl)) {

        //该宏保证了completedBlock回调在主线程中执行
        dispatch_main_sync_safe(^{
            NSError *error = [NSError errorWithDomain:NSURLErrorDomain code:NSURLErrorFileDoesNotExist userInfo:nil];
            completedBlock(nil, error, SDImageCacheTypeNone, YES, url);
        });
        return operation;
    }

    //加互斥锁，把当前的下载任务添加到『当前正在执行任务数组』中
    @synchronized (self.runningOperations) {
        [self.runningOperations addObject:operation];
    }
    //得到该URL对应的缓存KEY
    NSString *key = [self cacheKeyForURL:url];

    //该方法查找URLKEY对应的图片缓存是否存在，查找完毕之后把该图片（存在|不存在）和该图片的缓存方法以block的方式传递
    //缓存情况查找完毕之后，在block块中进行后续处理（如果该图片没有缓存·下载|如果缓存存在|如果用户设置了下载的缓存策略是刷新缓存如何处理等等）
    operation.cacheOperation = [self.imageCache queryDiskCacheForKey:key done:^(UIImage *image, SDImageCacheType cacheType) {
        //先判断该下载操作是否已经被取消，如果被取消则把当前操作从runningOperations数组中移除，并直接返回
        if (operation.isCancelled) {
            @synchronized (self.runningOperations) {
                [self.runningOperations removeObject:operation];
            }

            return;
        }

        //（图片不存在||下载策略为刷新缓存）且（shouldDownloadImageForURL不能响应||该图片存在缓存）
        if ((!image || options & SDWebImageRefreshCached) && (![self.delegate respondsToSelector:@selector(imageManager:shouldDownloadImageForURL:)] || [self.delegate imageManager:self shouldDownloadImageForURL:url])) {
            //从此处开始，一直在处理downloaderOptions（即下载策略）
            if (image && options & SDWebImageRefreshCached) {   //如果图像存在，但是下载策略为刷新缓存，则通知缓存图像并尝试重新下载
                dispatch_main_sync_safe(^{
                    // If image was found in the cache but SDWebImageRefreshCached is provided, notify about the cached image
                    // AND try to re-download it in order to let a chance to NSURLCache to refresh it from server.
                    completedBlock(image, nil, cacheType, YES, url);
                });
            }
            // download if no image or requested to refresh anyway, and download allowed by delegate
            SDWebImageDownloaderOptions downloaderOptions = 0;
            //如果下载策略为SDWebImageLowPriority 那么downloaderOptions = 其本身
            if (options & SDWebImageLowPriority) downloaderOptions |= SDWebImageDownloaderLowPriority;
            if (options & SDWebImageProgressiveDownload) downloaderOptions |= SDWebImageDownloaderProgressiveDownload;
            if (options & SDWebImageRefreshCached) downloaderOptions |= SDWebImageDownloaderUseNSURLCache;
            if (options & SDWebImageContinueInBackground) downloaderOptions |= SDWebImageDownloaderContinueInBackground;
            if (options & SDWebImageHandleCookies) downloaderOptions |= SDWebImageDownloaderHandleCookies;
            if (options & SDWebImageAllowInvalidSSLCertificates) downloaderOptions |= SDWebImageDownloaderAllowInvalidSSLCertificates;
            if (options & SDWebImageHighPriority) downloaderOptions |= SDWebImageDownloaderHighPriority;
            if (image && options & SDWebImageRefreshCached) { //如果图片存在，且下载策略为刷新刷新缓存
                // force progressive off if image already cached but forced refreshing
                //如果图像已缓存，但需要刷新缓存，那么强制进行刷新
                downloaderOptions &= ~SDWebImageDownloaderProgressiveDownload;
                // ignore image read from NSURLCache if image if cached but force refreshing
                //忽略从NSURLCache读取图片
                downloaderOptions |= SDWebImageDownloaderIgnoreCachedResponse;
            }
            //到此处位置，downloaderOptions（即下载策略）处理操作结束

            //核心方法：使用下载器，下载图片
            id <SDWebImageOperation> subOperation = [self.imageDownloader downloadImageWithURL:url options:downloaderOptions progress:progressBlock completed:^(UIImage *downloadedImage, NSData *data, NSError *error, BOOL finished) {
                if (weakOperation.isCancelled) {
                    //如果此时操作被取消，那么什么也不做
                    // Do nothing if the operation was cancelled
                    // See #699 for more details
                    // if we would call the completedBlock, there could be a race condition between this block and another completedBlock for the same object, so if this one is called second, we will overwrite the new data
                }
                else if (error) { //如果下载失败，则处理结束的回调，在合适的情况下把对应图片的URL添加到黑名单中
                    dispatch_main_sync_safe(^{
                        if (!weakOperation.isCancelled) {
                            completedBlock(nil, error, SDImageCacheTypeNone, finished, url);
                        }
                    });

                    if (   error.code != NSURLErrorNotConnectedToInternet
                        && error.code != NSURLErrorCancelled
                        && error.code != NSURLErrorTimedOut
                        && error.code != NSURLErrorInternationalRoamingOff
                        && error.code != NSURLErrorDataNotAllowed
                        && error.code != NSURLErrorCannotFindHost
                        && error.code != NSURLErrorCannotConnectToHost) {
                        @synchronized (self.failedURLs) {
                            [self.failedURLs addObject:url];
                        }
                    }
                }
                else {//下载成功
                    //先判断当前的下载策略是否是SDWebImageRetryFailed，如果是那么把该URL从黑名单中删除
                    if ((options & SDWebImageRetryFailed)) {
                        @synchronized (self.failedURLs) {
                            [self.failedURLs removeObject:url];
                        }
                    }

                    //是否要进行磁盘缓存？
                    BOOL cacheOnDisk = !(options & SDWebImageCacheMemoryOnly);

                    //如果下载策略为SDWebImageRefreshCached且该图片缓存中存在且未下载下来，那么什么都不做
                    if (options & SDWebImageRefreshCached && image && !downloadedImage) {
                        // Image refresh hit the NSURLCache cache, do not call the completion block
                    }
                    else if (downloadedImage && (!downloadedImage.images || (options & SDWebImageTransformAnimatedImage)) && [self.delegate respondsToSelector:@selector(imageManager:transformDownloadedImage:withURL:)]) {
                        //否则，如果下载图片存在且（不是可动画图片数组||下载策略为SDWebImageTransformAnimatedImage&&transformDownloadedImage方法可用）
                        //开子线程处理
                        dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_HIGH, 0), ^{
                            //在下载后立即将图像转换，并进行磁盘和内存缓存
                            UIImage *transformedImage = [self.delegate imageManager:self transformDownloadedImage:downloadedImage withURL:url];
                            if (transformedImage && finished) {
                                BOOL imageWasTransformed = ![transformedImage isEqual:downloadedImage];
                                [self.imageCache storeImage:transformedImage recalculateFromImage:imageWasTransformed imageData:(imageWasTransformed ? nil : data) forKey:key toDisk:cacheOnDisk];
                            }

                            //在主线程中回调completedBlock
                            dispatch_main_sync_safe(^{
                                if (!weakOperation.isCancelled) {
                                    completedBlock(transformedImage, nil, SDImageCacheTypeNone, finished, url);
                                }
                            });
                        });
                    }
                    else {
                        //得到下载的图片且已经完成，则进行缓存处理
                        if (downloadedImage && finished) {
                            [self.imageCache storeImage:downloadedImage recalculateFromImage:NO imageData:data forKey:key toDisk:cacheOnDisk];
                        }

                        dispatch_main_sync_safe(^{
                            if (!weakOperation.isCancelled) {
                                completedBlock(downloadedImage, nil, SDImageCacheTypeNone, finished, url);
                            }
                        });
                    }
                }

                if (finished) {
                    @synchronized (self.runningOperations) {
                        [self.runningOperations removeObject:operation];
                    }
                }
            }];

            //处理cancelBlock
            operation.cancelBlock = ^{
                [subOperation cancel];

                @synchronized (self.runningOperations) {
                    [self.runningOperations removeObject:weakOperation];
                }
            };
        }
        else if (image) {   //如果图片存在，且操作没有被取消，那么在主线程中回调completedBlock，并把当前操作移除
            dispatch_main_sync_safe(^{
                if (!weakOperation.isCancelled) {
                    completedBlock(image, nil, cacheType, YES, url);
                }
            });
            @synchronized (self.runningOperations) {
                [self.runningOperations removeObject:operation];
            }
        }
        else {
            // Image not in cache and download disallowed by delegate
            //图片不存在缓存且不允许代理下载，那么在主线程中回调completedBlock，并把当前操作移除
            dispatch_main_sync_safe(^{
                if (!weakOperation.isCancelled) {
                    completedBlock(nil, nil, SDImageCacheTypeNone, YES, url);
                }
            });
            @synchronized (self.runningOperations) {
                [self.runningOperations removeObject:operation];
            }
        }
    }];

    return operation;
}

缓存及磁盘操作

//检查要下载图片的缓存情况
/*
 1.先检查是否有内存缓存
 2.如果没有内存缓存则检查是否有沙盒缓存
 3.如果有沙盒缓存，则对该图片进行内存缓存处理并执行doneBlock回调
 */
- (NSOperation *)queryDiskCacheForKey:(NSString *)key done:(SDWebImageQueryCompletedBlock)doneBlock {

    //如果回调不存在，则直接返回
    if (!doneBlock) {
        return nil;
    }

    //如果缓存对应的key为空，则直接返回，并把存储方式（无缓存）通过block块以参数的形式传递
    if (!key) {
        doneBlock(nil, SDImageCacheTypeNone);
        return nil;
    }

    // First check the in-memory cache...
    //检查该KEY对应的内存缓存，如果存在内存缓存，则直接返回，并把图片和存储方式（内存缓存）通过block块以参数的形式传递
    UIImage *image = [self imageFromMemoryCacheForKey:key];
    if (image) {
        doneBlock(image, SDImageCacheTypeMemory);
        return nil;
    }

     //创建一个操作
    NSOperation *operation = [NSOperation new];
    //使用异步函数，添加任务到串行队列中（会开启一个子线程处理block块中的任务）
    dispatch_async(self.ioQueue, ^{
         //如果当前的操作被取消，则直接返回
        if (operation.isCancelled) {
            return;
        }

        @autoreleasepool {
            //检查该KEY对应的磁盘缓存
            UIImage *diskImage = [self diskImageForKey:key];
            //如果存在磁盘缓存，且应该把该图片保存一份到内存缓存中，则先计算该图片的cost(成本）并把该图片保存到内存缓存中
            if (diskImage && self.shouldCacheImagesInMemory) {
                //计算图片的Cost
                NSUInteger cost = SDCacheCostForImage(diskImage);
                //对该图片进行内存缓存处理
                [self.memCache setObject:diskImage forKey:key cost:cost];
            }

             //线程间通信，在主线程中回调doneBlock，并把图片和存储方式（磁盘缓存）通过block块以参数的形式传递
            dispatch_async(dispatch_get_main_queue(), ^{
                doneBlock(diskImage, SDImageCacheTypeDisk);
            });
        }
    });

    return operation;
}

注：（磁盘缓存目录）

缓存在磁盘沙盒目录下 Library/Caches
二级目录为 ~/Library/Caches/default/com.hackemist.SDWebImageCache.default

#pragma mark SDImageCache Life Cycle

//初始化方法，默认的缓存空间名称为default
- (id)init {
    return [self initWithNamespace:@"default"];
}

//使用指定的命名空间实例化一个新的缓存存储
- (id)initWithNamespace:(NSString *)ns {
    //根据传入的命名空间设置磁盘缓存路径
    NSString *path = [self makeDiskCachePath:ns];
    return [self initWithNamespace:ns diskCacheDirectory:path];
}

//使用指定的命名空间实例化一个新的缓存存储和目录
//拼接完成的结果为：沙盒--》caches路径--》default--》com.hackemist.SDWebImageCache.default
- (id)initWithNamespace:(NSString *)ns diskCacheDirectory:(NSString *)directory {
    if ((self = [super init])) {

        //拼接默认的磁盘缓存目录
        NSString *fullNamespace = [@"com.hackemist.SDWebImageCache." stringByAppendingString:ns];

        // initialise PNG signature data
        // 初始化PNG数据签名 8字节
        kPNGSignatureData = [NSData dataWithBytes:kPNGSignatureBytes length:8];

        // Create IO serial queue
        // 创建处理IO操作的串行队列
        _ioQueue = dispatch_queue_create("com.hackemist.SDWebImageCache", DISPATCH_QUEUE_SERIAL);

        // Init default values
        // 初始化默认的最大缓存时间 == 1周
        _maxCacheAge = kDefaultCacheMaxCacheAge;

        // Init the memory cache
        // 初始化内存缓存，使用NSCache(AutoPurgeCache)
        _memCache = [[AutoPurgeCache alloc] init];

        //设置默认的缓存磁盘目录
        _memCache.name = fullNamespace;

        // Init the disk cache
        //初始化磁盘缓存，如果磁盘缓存路径不存在则设置为默认值，否则根据命名空间重新设置
        if (directory != nil) {
            //以默认值得方式拼接
            _diskCachePath = [directory stringByAppendingPathComponent:fullNamespace];
        } else {
            //根据命名空间重新设置
            NSString *path = [self makeDiskCachePath:ns];
            _diskCachePath = path;
        }

        // Set decompression to YES
        // 设置图片是否解压缩，默认为YES
        _shouldDecompressImages = YES;

        // memory cache enabled
        // 是否进行内存缓存（默认为YES）
        _shouldCacheImagesInMemory = YES;

        // Disable iCloud
        // 是否禁用iCloud备份,默认为YES
        _shouldDisableiCloud = YES;

        //同步函数+串行队列：在当前线程中同步的初始化文件管理者
        dispatch_sync(_ioQueue, ^{
            _fileManager = [NSFileManager new];
        });

#if TARGET_OS_IOS
        // Subscribe to app events
        //监听应用程序通知
        //当监听到UIApplicationDidReceiveMemoryWarningNotification（系统级内存警告）调用clearMemory方法
        [[NSNotificationCenter defaultCenter] addObserver:self
                                                 selector:@selector(clearMemory)
                                                     name:UIApplicationDidReceiveMemoryWarningNotification
                                                   object:nil];

        //当监听到UIApplicationWillTerminateNotification（程序将终止）调用cleanDisk方法
        [[NSNotificationCenter defaultCenter] addObserver:self
                                                 selector:@selector(cleanDisk)
                                                     name:UIApplicationWillTerminateNotification
                                                   object:nil];

        //当监听到UIApplicationDidEnterBackgroundNotification（进入后台），调用backgroundCleanDisk方法
        [[NSNotificationCenter defaultCenter] addObserver:self
                                                 selector:@selector(backgroundCleanDisk)
                                                     name:UIApplicationDidEnterBackgroundNotification
                                                   object:nil];
#endif
    }

    return self;
}

遇到过的两种需求

一、图片进过加密处理，一段时间内可以访问，即图片地址后面跟的参数不同，但加载出来的图片是同一张，为了不重复下载，如何过滤图片地址？

方法： 写在viewDidLoad 或者 appDelegate里

1.版本5.0之前
// URL过滤器
[[SDWebImageManager sharedManager] setCacheKeyFilter:^NSString * _Nullable(NSURL * _Nullable url) {
    // 去除参数 ？后面的
    url = [[NSURL alloc] initWithScheme:url.scheme host:url.host path:url.path];
    return [url relativeString];
}];

2.版本5.0之后
// URL过滤器
SDWebImageCacheKeyFilter *filter = [[SDWebImageCacheKeyFilter alloc] initWithBlock:^NSString * _Nullable(NSURL * _Nonnull url) {
    // 去除参数 ？后面的
    url = [[NSURL alloc] initWithScheme:url.scheme host:url.host path:url.path];
    return [url relativeString];
}];
[[SDWebImageManager sharedManager] setCacheKeyFilter:filter];

二、如何做到tableView滚动时 不加载cell中的图片，停止滚动或减速时才加图片？

需要用到的核心方法：

 * 根据图片的url下载图片并设置到ImageView上面去，占位图片
 * 异步下载并缓存
 *
 * @param url            图片的URL
 * @param placeholder   显示在UIImageView上面的占位图片，直到图片下载完成
 * @param options       下载图片的选项。参考SDWebImageOptions的枚举值
 * @param completedBlock 当操作执行完毕之后的回调。该回调没有返回值
 *      第一个参数为请求的图片
 *      第二个参数是NSError类型的，如果图片下载成功则error为nil,否则error有值
 *      第三个参数是图片缓存的使用情况（内存缓存|沙盒缓存|直接下载）
 *      第四个参数是图片的URL地址
 */
- (void)sd_setImageWithURL:(NSURL *)url placeholderImage:(UIImage *)placeholder options:(SDWebImageOptions)options completed:(SDWebImageCompletionBlock)completedBlock;

SDWebImageOptions 枚举类型：

//使用位移枚举，通过按位与&按位或|的组合方式传递多个值
typedef NS_OPTIONS(NSUInteger, SDWebImageOptions) {
    /**
     * By default, when a URL fail to be downloaded, the URL is blacklisted so the library won't keep trying.
     * This flag disable this blacklisting.
     *
     * 默认情况下，如果一个url在下载的时候失败了，那么这个url会被加入黑名单，不会尝试再次下载。如果使用该参数，则该URL不会被添加到黑名单中。意味着会对下载失败的URL尝试重新下载。
     * 此标记取消黑名单
     */
    SDWebImageRetryFailed = 1 << 0, //失败后尝试重新下载

    /**
     * By default, image downloads are started during UI interactions, this flags disable this feature,
     * leading to delayed download on UIScrollView deceleration for instance.
     *
     * 默认情况下，在 UI 交互时也会启动图像下载，此标记取消这一特性
     * 会推迟到滚动视图停止滚动之后再继续下载
     * 备注：NSURLConnection 的网络下载事件监听的运行循环模式是 NSDefaultRunLoopMode
     */
    SDWebImageLowPriority = 1 << 1,//低优先级

    /**
     * This flag disables on-disk caching
     *
     * 使用该参数，将禁止磁盘缓存，只做内存缓存
     */
    SDWebImageCacheMemoryOnly = 1 << 2,//只使用内存缓存

    /**
     * This flag enables progressive download, the image is displayed progressively during download as a browser would do.
     * By default, the image is only displayed once completely downloaded.
     *
     * 此标记允许渐进式下载，就像浏览器中那样，下载过程中，图像会逐步显示出来
     * 默认情况下，图像会在下载完成后一次性显示
     */
    SDWebImageProgressiveDownload = 1 << 3,//渐进式下载

    /**
     * Even if the image is cached, respect the HTTP response cache control, and refresh the image from remote location if needed.
     * The disk caching will be handled by NSURLCache instead of SDWebImage leading to slight performance degradation.
     * This option helps deal with images changing behind the same request URL, e.g. Facebook graph api profile pics.
     * If a cached image is refreshed, the completion block is called once with the cached image and again with the final image.
     *
     * Use this flag only if you can't make your URLs static with embedded cache busting parameter.
     *
     * 遵守 HTPP 响应的缓存控制，如果需要，从远程刷新图像
     * 磁盘缓存将由 NSURLCache 处理，而不是 SDWebImage，这会对性能有轻微的影响
     * 此选项用于处理URL指向图片发生变化的情况
     * 如果缓存的图像被刷新，会调用一次 completion block，并传递最终的图像
     */
    SDWebImageRefreshCached = 1 << 4, //刷新缓存

    /**
     * In iOS 4+, continue the download of the image if the app goes to background. This is achieved by asking the system for
     * extra time in background to let the request finish. If the background task expires the operation will be cancelled.
     *
     * 如果系统版本是iOS 4+的，那么当App进入后台后仍然会继续下载图像。
     * 这是向系统请求额外的后台时间以保证下载请求完成的
     * 如果后台任务过期，请求将会被取消
     */
    SDWebImageContinueInBackground = 1 << 5,    //后台下载

    /**
     * Handles cookies stored in NSHTTPCookieStore by setting
     * NSMutableURLRequest.HTTPShouldHandleCookies = YES;
     *
     * 通过设置，处理保存在 NSHTTPCookieStore 中的 cookies
     */
    SDWebImageHandleCookies = 1 << 6,    //处理保存在NSHTTPCookieStore中的cookies

    /**
     * Enable to allow untrusted SSL certificates.
     * Useful for testing purposes. Use with caution in production.
     *
     * 允许不信任的 SSL 证书
     * 可以出于测试目的使用，在正式产品中慎用
     */
    SDWebImageAllowInvalidSSLCertificates = 1 << 7,  //允许不信任的 SSL 证书

    /**
     * By default, image are loaded in the order they were queued. This flag move them to
     * the front of the queue and is loaded immediately instead of waiting for the current queue to be loaded (which
     * could take a while).
     *
     *  默认情况下，图像会按照添加到队列中的顺序被加载，此标记会将它们移动到队列前端被立即加载
     *  而不是等待当前队列被加载，因为等待队列加载会需要一段时间
     */
    SDWebImageHighPriority = 1 << 8,     //高优先级（优先下载）

    /**
     * By default, placeholder images are loaded while the image is loading. This flag will delay the loading
     * of the placeholder image until after the image has finished loading.
     *
     * 默认情况下，在加载图像时，占位图像已经会被加载。
     * 此标记会延迟加载占位图像，直到图像已经完成加载
     */
    SDWebImageDelayPlaceholder = 1 << 9,    //延迟占位图片

    /**
     * We usually don't call transformDownloadedImage delegate method on animated images,
     * as most transformation code would mangle it.
     * Use this flag to transform them anyway.
     *
     * 通常不会在可动画的图像上调用transformDownloadedImage代理方法，因为大多数转换代码会破坏动画文件
     * 使用此标记尝试转换
     */
    SDWebImageTransformAnimatedImage = 1 << 10, //转换动画图像

    /**
     * By default, image is added to the imageView after download. But in some cases, we want to
     * have the hand before setting the image (apply a filter or add it with cross-fade animation for instance)
     * Use this flag if you want to manually set the image in the completion when success
     *
     * 下载完成后手动设置图片，默认是下载完成后自动放到ImageView上
     */
    SDWebImageAvoidAutoSetImage = 1 << 11   //手动设置图像
};

参数填成以下就可以了

options: SDWebImageRetryFailed |SDWebImageLowPriority
